How to Add an Audit Trail to an AI Workflow

An ordinary application log can tell you that a model answered. It often cannot tell you which retrieved evidence, tool attempt, approval, and version produced the action that followed.

I am building TryUncle, an AI agent that watches the screen and annotates it live. That constraint is enough to make the design problem concrete: when an AI action happens in time-sensitive work, a final answer is not the lineage. You need to know what happened before the action and who allowed it. This article uses that constraint as motivation only. The evidence below is a small synthetic demo, not a deployed TryUncle system.

Here is the result before the walkthrough. I ran a dependency-free Node.js fixture that exports four correlated spans and two timestamped events. After removing the UI, its tests passed for reconstruction, a missing retrieval span, a rejected approval, a retry, and redaction.

{
  "tests": {
    "reconstructable": "pass",
    "missing_span": "pass",
    "rejected_approval": "pass",
    "retry": "pass",
    "redaction": "pass"
  },
  "counts": {
    "spans": 4,
    "events": 2,
    "trace_id": "44444444444444444444444444444444"
  }
}

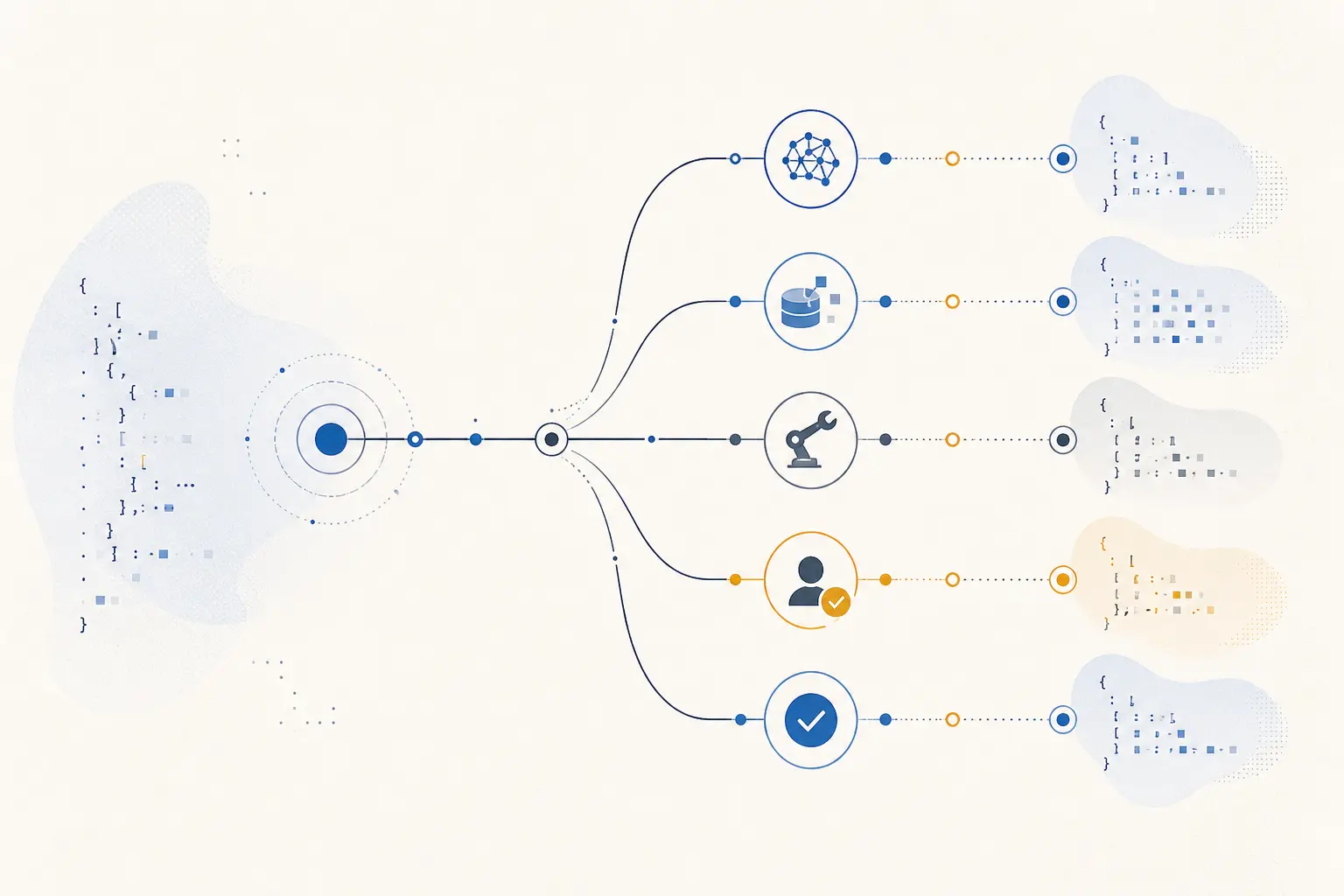

What should an AI workflow audit trail prove?

An audit trail should let a reviewer reconstruct the path from input decision to outcome, including the actions that did not happen. It should answer five questions: which run was this, which versions participated, what did the workflow call, what did a human approve or reject, and what outcome was recorded?

That is different from a monitoring signal. Monitoring asks whether latency, errors, or volume look unusual. An audit record explains one run. You may use the same OpenTelemetry data for both, but you should not design the record around a dashboard query and assume the dashboard will always exist.

OpenTelemetry's current GenAI registry provides operation names and fields for model, workflow, retrieval, and tool activity, while its event guidance separates timestamped occurrences from operations with duration (GenAI semantic conventions, event conventions). NIST's Generative AI Profile also points teams toward documented knowledge limits, provenance, model versions, human oversight, and incident records (NIST AI RMF Generative AI Profile).

The smallest useful contract is therefore:

Record	Capture	Why it matters
Workflow span	run_id, trace_id, operation, workflow version, actor	Establishes the unit being reviewed
Model span	provider, model, prompt version, usage if available, content policy	Shows which generation produced the next decision
Retrieval span	source-set version, document IDs or hashes, result count	Shows what context was available without copying sensitive text
Tool span	tool name and type, tool version, attempt, idempotency key, result status	Shows the action and whether it was retried
Approval event	approver, decision, timestamp, approval ID, reason	Shows whether a person allowed, rejected, or deferred the action
Outcome event	completed, blocked, failed, or escalated plus reason	Closes the run without inferring success from a final message

The useful test is not “can the dashboard draw a nice tree?” It is “can a reviewer follow this table from exported JSON alone?”

How should you correlate the records?

Give every record a stable run ID, a W3C-compatible trace ID, a span ID, and a parent span ID. Repeat the trace ID on exported events so a log consumer can join the audit record even if it does not understand the UI's trace tree.

W3C Trace Context standardizes propagation across service boundaries. Its traceparent value carries the trace identity and the caller's position in that trace (W3C Trace Context). OpenTelemetry's log data model likewise defines timestamp, trace ID, span ID, severity, and event name as fields that make a log record correlate with a trace (OpenTelemetry Logs Data Model).

Use spans for operations that have a start and an end. In the demo, the root invoke_workflow span parents chat, retrieval, and execute_tool. Use events for approval, retry, and outcome because each is a point-in-time occurrence that can happen zero, one, or many times. OpenTelemetry makes the same distinction in its event guidance.

Do not make event_name contain a case ID, user ID, or attempt number. Keep the event name low-cardinality, such as ai.approval.requested or ai.tool.retry, and put the changing values in attributes. That preserves queryability without turning every case into a new event type.

What fields map to OpenTelemetry GenAI conventions?

Use OpenTelemetry names where they already describe the operation. Use an ai.audit.* namespace for the audit contract that OpenTelemetry does not define.

Demo field	OpenTelemetry mapping	Audit-specific decision
trace_id, span_id, parent_span_id	Trace and span correlation fields	Every span and event repeats trace_id; parents preserve the action path
gen_ai.operation.name	invoke_workflow, chat, retrieval, execute_tool	The demo validates that all four operations are present
gen_ai.workflow.name	Workflow identity	The value is audit-demo, while workflow_version is custom and versioned
gen_ai.provider.name, gen_ai.request.model	Model provider and requested model	Keep provider and model separate so a model swap is visible
gen_ai.retrieval.documents or gen_ai.data_source.id	Retrieved documents or source identity	The demo keeps a source-set version, count, and query hash rather than raw passages
gen_ai.tool.name, gen_ai.tool.type	Tool identity and type	ai.audit.tool_version records the executable contract version
gen_ai.tool.call.arguments and gen_ai.tool.call.result	Tool parameters and result	Capture only fields approved by policy; the demo uses a redacted argument marker
Event timestamp, event_name, severity	OpenTelemetry event and log concepts	Approval, retry, and outcome names are custom domain events
ai.audit.prompt_version, ai.audit.attempts, ai.audit.idempotency_key	No direct GenAI equivalent	Keep them because they explain which executable contract and attempt produced the action

The GenAI registry explicitly warns that tool arguments and results may contain sensitive information and describes them as structured values. That is a reason to apply a capture policy before export, not a reason to dump them by default. The registry is also evolving, with entries moved to a dedicated repository, so pin the semantic-convention version you adopt and review it on a schedule.

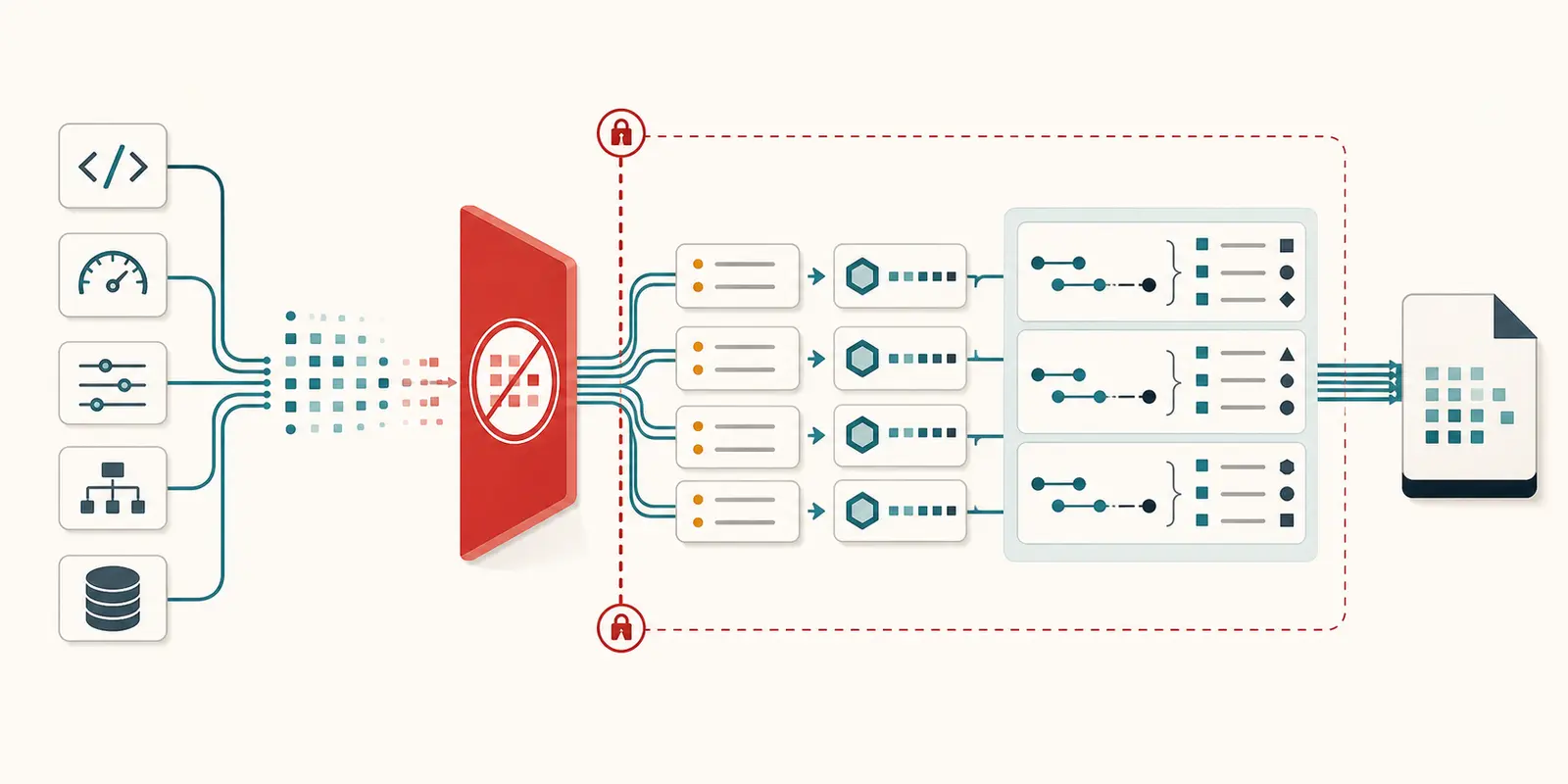

How do you emit an audit export?

Start with one in-process record builder. It can later feed an OpenTelemetry SDK or Collector, but the contract should be understandable before a backend is introduced. Save the following as audit-demo.mjs and run it with Node.js.

import assert from "node:assert/strict";
import { createHash } from "node:crypto";

const BASE_TIME = "2026-08-23T12:00:00.000Z";
const sensitiveKey = /authorization|access_token|secret|raw_prompt|email/i;

function redactString(value) {
  return value
    .replace(/[A-Z0-9._%+-]+@[A-Z0-9.-]+\.[A-Z]{2,}/gi, "[REDACTED_EMAIL]")
    .replace(/Bearer\s+[A-Za-z0-9._-]+/gi, "Bearer [REDACTED_TOKEN]");
}
function redact(value, key = "") {
  if (sensitiveKey.test(key)) return "[REDACTED]";
  if (typeof value === "string") return redactString(value);
  if (Array.isArray(value)) return value.map(item => redact(item));
  if (value && typeof value === "object") {
    return Object.fromEntries(Object.entries(value).map(([k, v]) => [k, redact(v, k)]));
  }
  return value;
}
function hash(value) {
  return createHash("sha256").update(value).digest("hex").slice(0, 16);
}
function buildRun({ approval = "approved", toolAttempts = 1, omit = [] } = {}) {
  const spans = [];
  const events = [];
  let sequence = 0;
  const traceId = "4".repeat(32);
  const runId = "run-001";
  const common = { trace_id: traceId, run_id: runId, workflow_version: "workflow@1.2.0" };
  function addSpan(name, parentSpanId, attributes, status = "OK") {
    const spanId = (String(spans.length + 1)).padStart(16, "0");
    const span = { ...common, span_id: spanId, parent_span_id: parentSpanId, name,
      start_time: BASE_TIME, end_time: BASE_TIME, status: { code: status }, attributes: redact(attributes) };
    spans.push(span);
    return span;
  }
  function addEvent(eventName, spanId, attributes, severity = "INFO") {
    events.push({ ...common, event_id: "evt-" + String(++sequence).padStart(3, "0"),
      timestamp: BASE_TIME, span_id: spanId, event_name: eventName, severity,
      attributes: redact(attributes) });
  }
  const root = addSpan("invoke_workflow audit-demo", null, {
    "gen_ai.operation.name": "invoke_workflow", "gen_ai.workflow.name": "audit-demo",
    "ai.audit.prompt_version": "prompt@3.1.0", "ai.audit.actor": "reviewer-01"
  });
  addSpan("chat model", root.span_id, {
    "gen_ai.operation.name": "chat", "gen_ai.provider.name": "demo-provider",
    "gen_ai.request.model": "demo-model-1", "ai.audit.input_preview": "Review invoice for alice@example.com",
    "ai.audit.input_hash": hash("Review invoice for alice@example.com"), "ai.audit.capture_policy": "content-redacted",
    authorization: "Bearer secret"
  });
  const retrieval = addSpan("retrieval policy", root.span_id, {
    "gen_ai.operation.name": "retrieval", "ai.audit.source_set": "policy-v4",
    "ai.audit.query_hash": hash("invoice policy"), "ai.audit.result_count": 2
  });
  if (omit.includes("retrieval")) spans.splice(spans.indexOf(retrieval), 1);
  addEvent("ai.approval.requested", root.span_id, {
    "ai.audit.approval_id": "approval-001", "ai.audit.decision": approval,
    "ai.audit.approver": "reviewer-01", email: "alice@example.com"
  }, approval === "rejected" ? "WARN" : "INFO");
  if (approval === "approved") {
    const tool = addSpan("execute_tool update_case", root.span_id, {
      "gen_ai.operation.name": "execute_tool", "gen_ai.tool.name": "update_case",
      "gen_ai.tool.type": "function", "ai.audit.tool_version": "update_case@2.0.0",
      "gen_ai.tool.call.arguments": { case_id: "case-17", note: "[redacted by policy]" },
      "ai.audit.attempts": toolAttempts
    });
    if (toolAttempts > 1) addEvent("ai.tool.retry", tool.span_id, {
      "ai.audit.attempt": 2, "ai.audit.reason": "timeout",
      "ai.audit.idempotency_key": "run-001:update_case:case-17"
    }, "WARN");
  }
  addEvent("ai.workflow.outcome", root.span_id, {
    "ai.audit.outcome": approval === "approved" ? "completed" : "blocked",
    "ai.audit.reason": approval === "approved" ? "tool_result_recorded" : "approval_rejected"
  }, approval === "approved" ? "INFO" : "WARN");
  return { audit_schema_version: "audit.v1", ...common, spans, events };
}
function requiredOps(exported) {
  return new Set(exported.spans.map(span => span.attributes["gen_ai.operation.name"]));
}
function assertReconstructable(exported) {
  const ops = requiredOps(exported);
  assert.deepEqual([...ops].sort(), ["chat", "execute_tool", "invoke_workflow", "retrieval"]);
  assert.ok(exported.events.some(event => event.event_name === "ai.approval.requested"));
  assert.ok(exported.events.some(event => event.event_name === "ai.workflow.outcome"));
  assert.ok(exported.spans.every(span => span.trace_id === exported.trace_id));
}
const happy = buildRun();
assertReconstructable(happy);
assert.equal(happy.spans.length, 4);
assert.equal(JSON.stringify(happy).includes("alice@example.com"), false);
assert.equal(JSON.stringify(happy).includes("Bearer secret"), false);
const missing = buildRun({ omit: ["retrieval"] });
assert.throws(() => { if (!requiredOps(missing).has("retrieval")) throw new Error("missing span: retrieval"); });
const rejected = buildRun({ approval: "rejected" });
assert.equal(rejected.spans.some(span => span.attributes["gen_ai.operation.name"] === "execute_tool"), false);
const retried = buildRun({ toolAttempts: 2 });
assert.ok(retried.events.some(event => event.event_name === "ai.tool.retry"));
console.log(JSON.stringify({ tests: "pass", spans: happy.spans.length, events: happy.events.length }, null, 2));

The important design choice is not the helper functions. It is the boundary between standard operation fields and your application contract. If you later replace the in-process export with an OpenTelemetry SDK, preserve the same IDs, parent relationships, event names, and redaction policy.

What should you redact, hash, or leave out?

Redact before the record leaves the process. Do not export a secret and hope the backend's search permissions will save you. OpenTelemetry's own GenAI registry flags system instructions, tool arguments, tool results, and other content fields as potentially sensitive. The Collector can help with processing and filtering, but a policy at the application boundary gives you a safer default (OpenTelemetry Collector).

Data	Default treatment	What remains reviewable
Email, access token, authorization header	Redact	That the field existed and was removed, if needed
Prompt or retrieved passage	Do not export by default	Prompt version, source-set version, hash, count, and policy
Tool arguments	Allowlist fields, then redact	Tool name, version, attempt, idempotency key, and selected identifiers
Tool result	Record status and a hash or reference	Whether the call completed, failed, or was retried
Model output	Store a governed reference or structured result summary	Output type, finish reason, usage, and outcome
Chain-of-thought	Do not capture	The model call, decision boundary, approval, and result

The goal is not to make the record empty. It is to make the record useful without making raw content the default audit surface. A hash can help compare two values without exposing the value, but it is not proof of tamper resistance. If you need an evidentiary record, add an append-only store, access controls, retention rules, key management, and a signing or immutability strategy.

How do you test the audit trail without the UI?

Test the exported artifact as a document another person can inspect, not only as telemetry that a collector accepted. I used five checks:

Test	Mutation or fixture	Passing condition
Reconstruction	Happy-path export	Four required operations share a trace and the approval and outcome events are present
Missing span	Remove the retrieval span	Validation fails with missing span: retrieval
Rejected approval	Set approval to rejected	The export records blocked and has no tool execution span
Retry	Set tool attempts to 2	A retry event records the attempt, timeout reason, and idempotency key
Redaction	Include a fixture email and bearer token	Neither value appears in serialized JSON

The observed happy path had four spans and two events. The missing-span test did not silently accept an incomplete trace. The rejected-approval path did not turn a refusal into a successful tool action. The retry test preserved the logical action while exposing the second attempt. Those are small checks, but each catches a failure that a final-answer log hides.

Run the checks with the UI removed. In practice, that means exporting the JSON to a file or memory buffer, discarding the trace viewer, and running a validator against the export. If a reviewer cannot identify the root workflow, its child operations, the approval decision, and the final state from that artifact, the contract is not ready.

Where is this audit trail not enough?

This demo proves reconstructability for a synthetic path. It does not prove that production instrumentation cannot be bypassed, that clocks are synchronized, that exports survive a backend outage, or that a retention policy satisfies a law or contract.

Add the next controls according to the consequence of the action:

1. Make the export path fail closed when an action cannot safely occur without an audit record.
2. Use an append-only or tamper-evident store when later alteration would matter.
3. Record exporter failures and queue state as part of the audit gap, rather than treating missing telemetry as success.
4. Pin the OpenTelemetry semantic-convention version and review changes because the GenAI registry is still evolving.
5. Keep approval identity and outcome ownership explicit. A model's final sentence is not a human authorization.

If the workflow is still a proof of concept, start with the smallest contract above and link it to the exit decision in How Do I Scope an AI Agent Proof of Concept?. When the system moves toward a real operating environment, pair the export with the checks in How to Monitor an AI Agent in Production. Monitoring tells you where to look. The audit trail tells you what happened when you get there.

The practical next step is simple: remove the UI from your own test, export one run, and ask a colleague to reconstruct it from JSON. Their first unanswered question is the next field your workflow needs.
